Features at a glance
As standard, Unistats® are equipped with the intuitive icon-
driven Pilot ONE® controller with E-grade® “Professional“.
Plug & Play technology
The modular controller concept permits easy service and the use of the controller as remote control.
Everything at a glance
All relevant temperatures can be viewed numerically and/or graphically on the
Pilot ONE’s screen.
Interfaces
As standard, the Pilot ONE is equipped with RS232, USB Device, USB Host, Ethernet and a Pt100 external sensor connection.
Record process data
If a USB drive is connected, process and service data can be recorded directly onto
it in real time.
Integrated programme function
An integrated programmer capable of storing 10 different and individually named programs and also includes the ability to program linear and exponential ramps. Programs can be uploaded or downloaded from a USB drive.
5,7″ touch screen
The operation of the Pilot ONE is easy and intuitive and is multilingual with a choice of 13 languages using the large colour touch display.

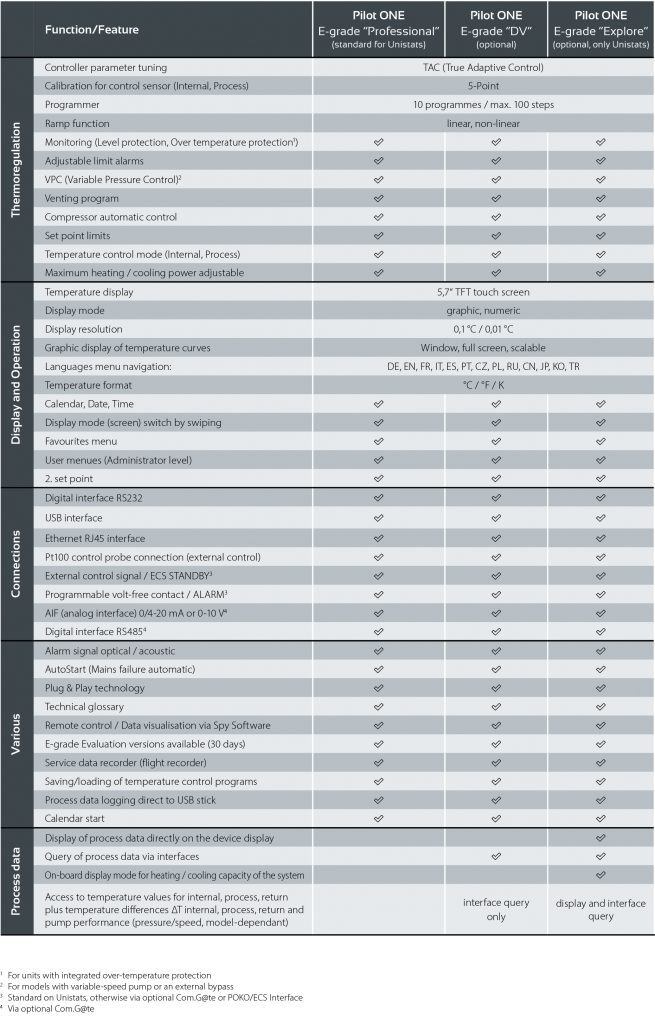

Optional Functions through ”E-grades”
E-grades widen the Pilot ONE’s capabilities. The „E-grade Explore“ displays various Temperatures and the diffreces between them and when a Flow Sensor is fitted, the Flow Rate of the HTF is also displayed. The “DV E grade“ widens the number of parameters that can be observed, recorded and/or controlled.
